IP68 M25 waterproof connectors 3P 3PA 5P
MOQ ：2000 piece
Lead Time ：25 Days
Product details
Product Specifications
- Brand name：LCH
- Rating:：250V/450V
- Pin：3P 3PA 5P
- Waterproof level：IP 68 at 5 bar
- Certificate：UKCA、TUV、CE、ROHS、IP68、LCH
- Temp Rating:：T85
Product Description
Product No.: LCH1165.68-I-3P-M25
LCH1165.68-I-3PA-M25
LCH1165.68-I-5P-M25
1. Cosmetic inspect、Environment description

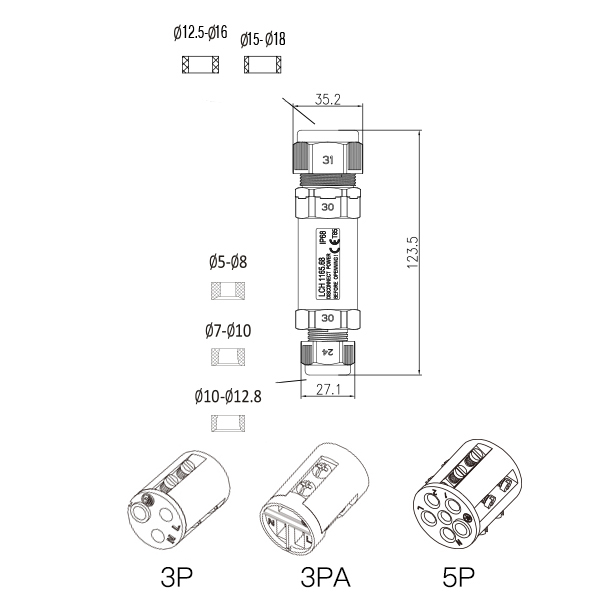

1.1 External dimensions for reference on the drawing
1.2 Normal ambient condition
Operating temperature：-30℃~85℃
Storage Temperature：-30℃~85℃
Barometric pressure：86~106KPa
Grade of Waterproofing：IP68
2. Product structure to describe
2.1 Method of connecting wire：Crimping by screw
2.2 Cable diameter：
M25 side：Φ12.5mm ~ Φ18mm
Other side：Φ5mm ~ Φ8mm ；Φ8mm ~ Φ14mm
2.3 Metal parts：Cu
2.4 Plastic housing：PA66, V-0, 960℃,PTI:250
2.5 Rubber gasket: Silicone
2.6 Maximum Current: 24A
3. Test standard
IEC60998-2-1:2004
IEC62444:2013
IEC60529:1991+A1:2000+A2:2013
4. Warranty 3 years limited
